PRODUCT DESCRIPTION | ||
NO. | ITEM | DESCRIPTION |
1 | Material | Mild steel, stainless steel, aluminum |
2 | Dimension L*W*H | Common 0.5mm-1000mm |
3 | Thickness of material | Common 0.2mm-20 mm |
4 | Process | Deep drawing |
5 | Tolerance | +/-0.2mm |
6 | Surface treatment | Powder coating, galvanization, anodizing |
7 | Application | Industry |
8 | Warranty time | 1 -2 year(s) |
9 | Place of Region | Jiangsu province of China |
10 | Samples service | Available |
About deep drawing
Deep drawing is a method used to shape sheet metal by pulling it into a forming die using a punch. This process allows the material to retain its shape while transforming it. When the depth of the formed part is greater than its diameter, it is called "deep" drawing. To achieve this, the part is redrawn through a series of dies. The area of the sheet metal near the die shoulder is subjected to radial drawing stress and tangential compressive stress due to the material retention. These compressive stresses, also known as hoop stresses, can cause wrinkles in the flange region. To prevent wrinkles, a blank holder is used to control the flow of material into the die radius.

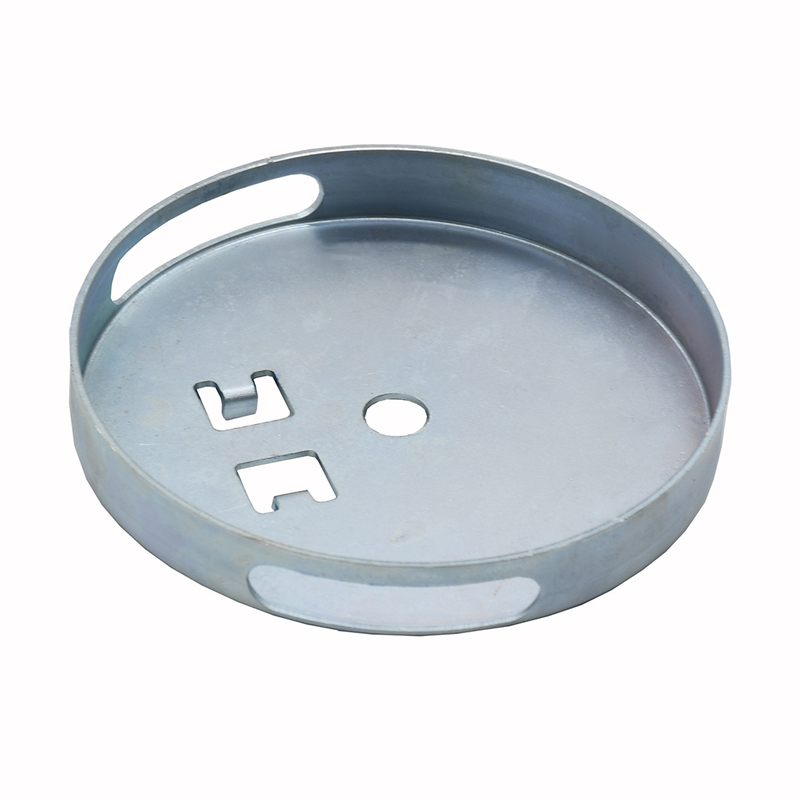

▼ Product Display
Constructed from premium materials such as mild steel, stainless steel, and aluminum, our deep drawing parts offer exceptional strength and resilience. Whether you require parts for industrial machinery, automotive components, or any other application, our range of materials ensures compatibility with various industries and environments.
The deep drawing process employed in the manufacturing of these parts guarantees superior accuracy and consistency. This technique allows for the creation of complex shapes and geometries, enabling us to cater to your specific design requirements. With our expertise in deep drawing, you can be confident in the precision and functionality of our fabricated parts.
▼ 3D drawing
To further enhance the longevity and aesthetics of our deep drawing parts, we offer a range of surface treatments. Choose from powder coating, galvanization, or anodizing to provide an added layer of protection against corrosion, wear, and tear. These surface treatments not only enhance the visual appeal of the parts but also ensure their longevity in demanding environments.
Related Products
Metalli's deep drawing capabilities
● Product dimension up to Length*Width 1200*1000 mm
● Depth or height up to 500 mm
● Wall thickness up to 6 mm
● Tolerance ±0.2 mm or less
● Common shapes covering round, cone, square, rectangle, and irregular
● Tools design available in house
● 10 hydraulic press machines from 100 tons to 1000 tons
More Options
Safe & Careful Package
